| Model | Q7 |
| Size specifications | 2250*900*1760mm |
| colors optional | option |
| The left and right track | 700mm |
| Voltage | 60V |
| The optional battery type | 60V/20AH/ 60V/35AHoptional |
| brake mode | drum/disc |
| Shock-absorbing size model | 240 |
| Max speed | 25KM/h |
| Hub | Aluminium |
| Transmission mode | gear |
| Wheelbase | 1565mm |
| The height from the ground | 120mm |
| MOtor power | 800W |
| Controller Specifications | 18 |
| Charge time | 8h |
| Braking diatance | ≤5m |
| The shell material | ABS |
| Tire size | 100/90-8 |
| The maximum load | 280kg |
| Climbing degree | ≤15℃ |
| Gross weight | 200 |
| Net weight | 198kg |
| Packing size | 2245*940*1200steel frame |
| Loading quantity | 12PCS/20FT 26PCS/40HQ |
Product function introduction:
The ceiling is made of ABS military plastic, with high impact strength; Good acid and alkali resistance and corrosion resistance. The car baking paint is bright and fadeless; The front seat can move forward and backward, suitable for all body types; The front and rear roof luggage racks can prevent the safety and convenience of articles. The instrument panel is set inside, which can drain water cups and other sundries. New technology and new materials are adopted, and the classic quality of the whole vehicle is perfectly matched with the after-sales parts. The car is not afraid of rain and snow, but cannot wade in the water;

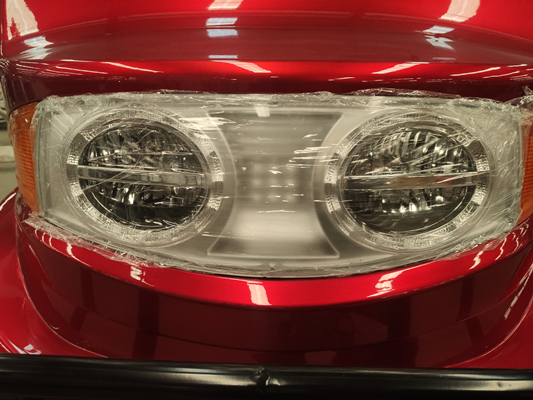

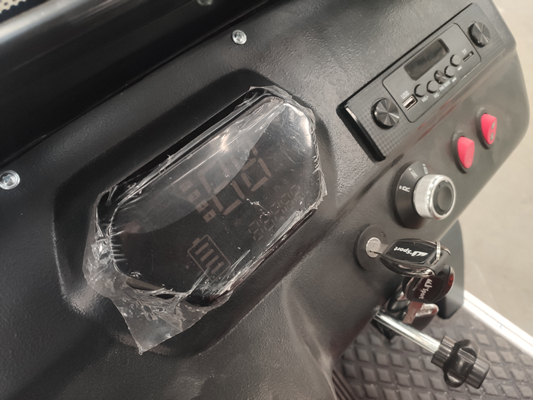

Big double LED headlight,very bright at night. there are two turning light in the side LCD display with speed,Power display and Driving mileage also equip with a video with USB charging plug
there is also a parking brake below the power lock

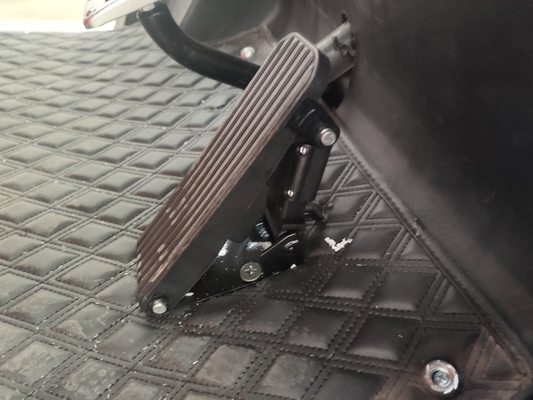

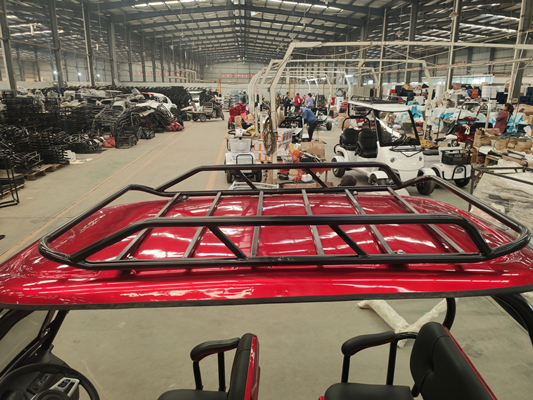

Foot accelerator and foot brake inside of handbrake and hand throttle equip with a luggage rack above the roof for short travlling

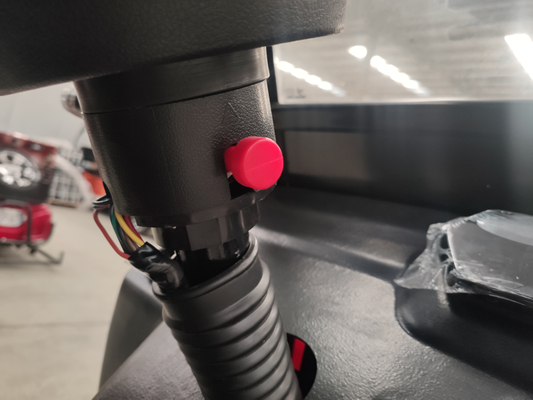

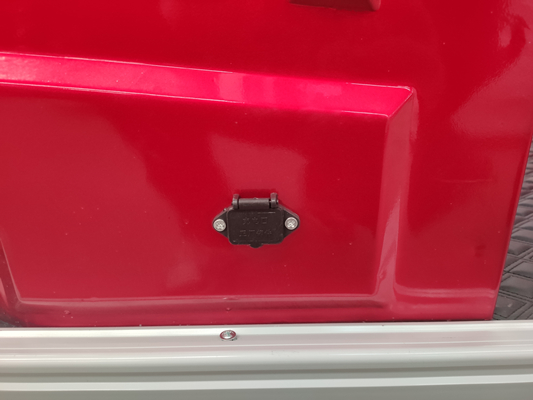

Charging socket for different kind of chargers Flash lamp below the steering wheel

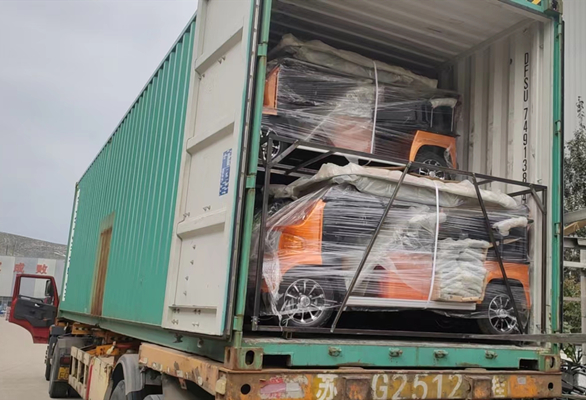

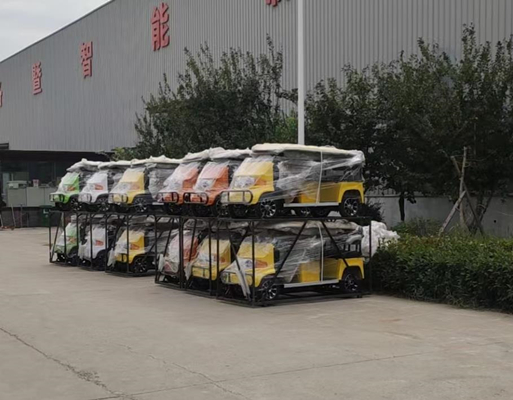

We packed this model into steel frame in two levels like pictures above,you can choose colors that you are interested in, just need send color card to us
We can also provide customized service for logos and other things needed.
Tips:
Charging method for electric vehicle placement
Even if you don't ride an electric car, the battery will discharge.After the battery is fully discharged, it shall be charged in time. It is forbidden to put the battery aside for a long time to prevent over discharge, which may lead to failure to charge in the later period. Many electric cars will basically be discharged within a week or two. Therefore, in order to protect the battery, it should be charged once a week or two without cycling. The specific charging interval depends on the discharge speed of the tram battery. When you go out for a year and a half and no one uses the car at home, you'd better remove the wiring of the battery pack, or at least the negative wiring, so as to slow down the slow discharge of the battery and protect the battery.
The battery shall not be in a state of discharge or insufficient charging for a long time, otherwise it will affect the capacity and service time of the battery. Whether the use and maintenance of the battery is reasonable or not is closely related to the service life of the battery
